Maintenance - component location
Routine maintenance and servicing / Maintenance - component location

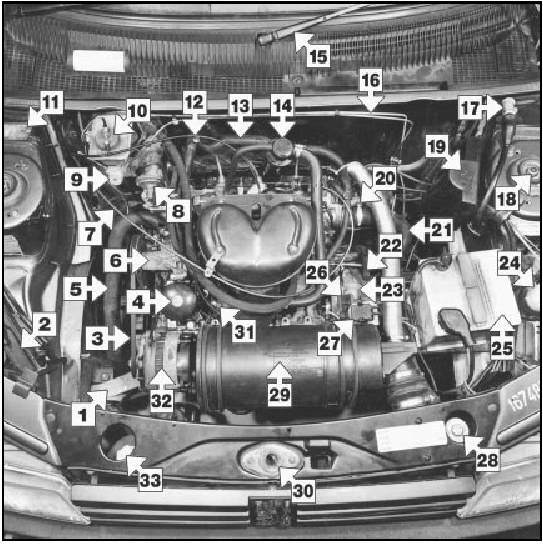

Underbonnet view of a 1360 cc GT model (XY8 series engine)
Underbonnet view of a 1360 cc GT model (XY8 series engine)

1 Right-hand front engine mounting 2 Jack
3 Drivebelt
4 Oil filter
5 Bottom hose
6 Water pump
7 Throttle cable
8 Fuel pump
9 Brake master cylinder
10 Brake fluid reservoir filler cap 11 Vehicle identification plate 12 Choke cable
13 Heater hose
14 Oil filler cap/crankcase ventilation filter 15 Windscreen wiper arm
16 Hydraulic brake lines 17 Cooling fan motor resistor 18 Front suspension shock absorber top mounting nut
19 Ignition coil cover
20 Distributor
21 Bottom hose
22 Clutch release fork
23 Clutch housing
24 Washer reservoir
25 Battery
26 Ignition timing aperture 27 Diagnostic socket
28 Radiator filler cap
29 Air cleaner
30 Bonnet lock
31 Oil pressure switch
32 Alternator
33 Cooling system expansion bottle

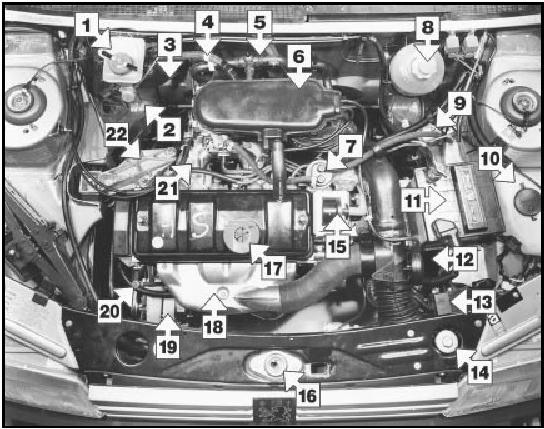

Underbonnet view of a 1360 cc XS model (TU series engine)
Underbonnet view of a 1360 cc XS model (TU series engine)

1 Brake fluid reservoir filler cap 2 Brake master cylinder
3 Brake vacuum servo unit 4 Servo vacuum hose
5 Cooling system bleed screw 6 Air cleaner cover
7 Fuel pump
8 Cooling system expansion bottle 9 Fuel filter
10 Washer fluid reservoir 11 Battery
12 Air temperature control unit 13 Auxiliary fusebox
14 Radiator filler cap
15 Ignition coil
16 Bonnet lock
17 Engine oil filler cap 18 Exhaust manifold hot air shroud 19 Alternator
20 Engine oil level dipstick 21 Inlet manifold
22 Right-hand engine mounting

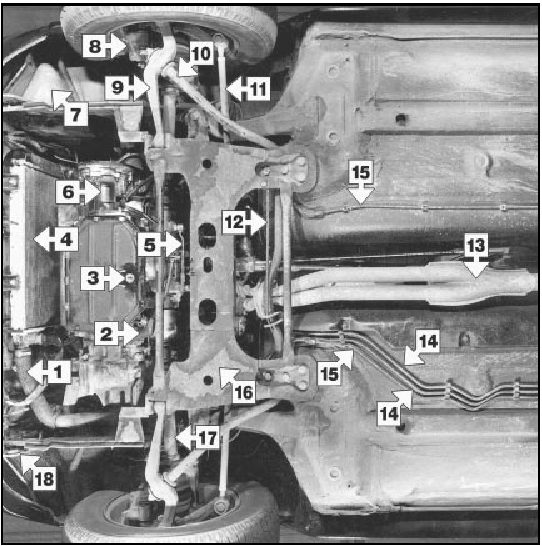

Front underside view of a 1360 cc GT model
Front underside view of a 1360 cc GT model

1 Bottom hose
2 Reverse lamp switch
3 Engine/transmission oil drain plug 4 Radiator
5 Gear linkage
6 Clutch housing and transfer gear assembly 7 Washer reservoir
8 Disc caliper
9 Lower suspension arm
10 Anti-roll bar
11 Track rod
12 Guide bar
13 Exhaust front pipe
14 Fuel feed and return pipes 15 Hydraulic brake lines 16 Subframe
17 Driveshaft
18 Front towing eye

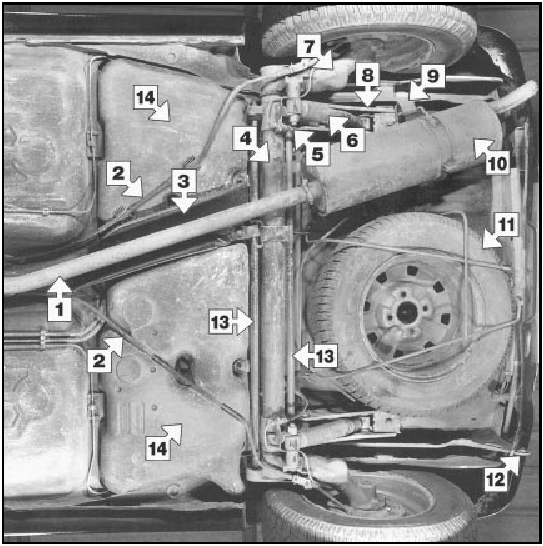

Rear underside view of a 1360 cc GT model
Rear underside view of a 1360 cc GT model

1 Exhaust front pipe 2 Handbrake cables
3 Heatshield
4 Rear suspension cross-tube 5 Brake hydraulic flexible hose 6 Rear shock absorber
7 Trailing arm
8 Side-member
9 Exhaust rubber mounting 10 Exhaust rear silencer 11 Spare wheel
12 Rear towing eye
13 Torsion bars
14 Fuel tank
