Front direction indicator light unit - removal and refitting
Body electrical system / Front direction indicator light unit - removal and refitting


Removal
1 Remove the headlight, as described in Section 10.

2 Remove the indicator bulb (see Section 8).

3 Remove the screw securing the light to the headlight adjustment assembly and withdraw the light unit (see illustrations).

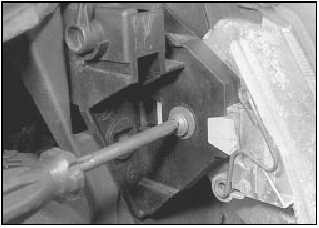

11.3a Remove the headlight adjustment assembly screw . . .
11.3a Remove the headlight adjustment assembly screw . . .

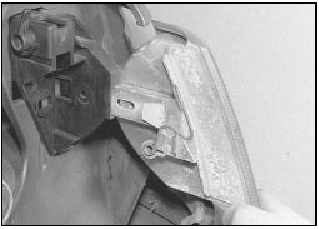

11.3b . . . and withdraw the front direction indicator light unit
11.3b . . . and withdraw the front direction indicator light unit

Refitting
4 Refitting is a reversal of removal.
