Fuel vapour recirculation system components - removal and refitting
Exhaust and emission control systems / Fuel vapour recirculation system components - removal and refitting


Carbon canister
Removal
1 The carbon canister is located at the rear left-hand corner of the engine compartment (see illustration).

8.1 Fuel vapour recirculation system carbon canister (A) and solenoid valve
8.1 Fuel vapour recirculation system carbon canister (A) and solenoid valve (B)

2 To remove the canister, first disconnect the hoses, noting their locations to ensure correct refitting.

3 Unscrew the clamp bolt, and lift the canister from its clamp on the body panel.

Refitting
4 Refitting is a reversal of removal, but ensure that the hoses are correctly reconnected, as noted before removal.

Solenoid valve
Removal
5 The solenoid valve is mounted on a bracket next to the carbon canister, at the rear left-hand corner of the engine compartment.

6 To remove the valve, first disconnect the battery negative lead.

7 Unbolt the bracket from the body panel, then disconnect the wiring plug (see illustrations).

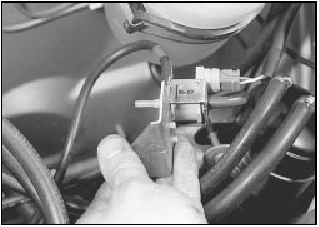

8.7a Unscrew the securing nut . . .
8.7a Unscrew the securing nut . . .

8.7b . . . and withdraw the solenoid bracket
8.7b . . . and withdraw the solenoid bracket

8 Disconnect the hoses from the valve, noting their locations to ensure correct refitting, then withdraw the valve.

Refitting
9 Refitting is a reversal of removal, ensuring that the hoses are correctly reconnected, as noted before removal.
